POLEA DE TRANSMISIÓN
|
CLAVE |
MODELO | DIMENSIONES (mm) | RANURAS | APTO PARA | ||||

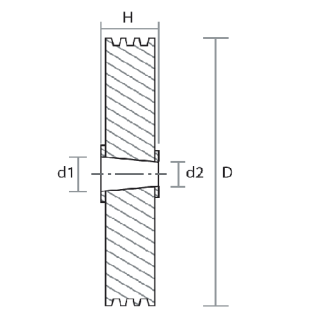

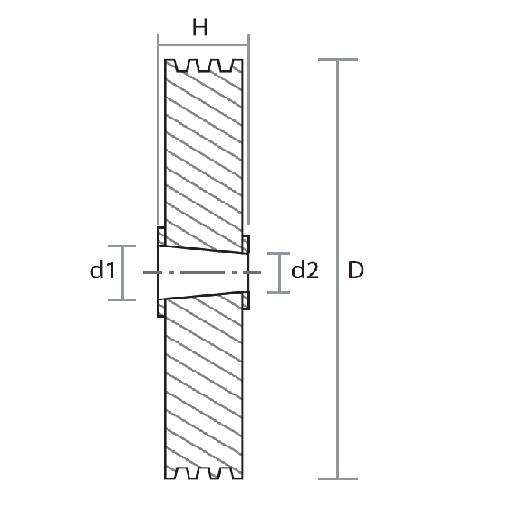

| D | d1 | d2 | H | No. | TIPO | MODELO DE COMRPESORES | ||
| 9151 | A150MM | 150 | 20 | 18 | 33 | 1 | A | SG1051 / YAH1051 |
| 9152 | A190MM | 190 | 20 | 18 | 36.5 | 1 | A | SG1065 / YAH1065 |
| 9154 | A265MM | 265 | 24 | 22 | 48 | 1 | A | SG2051 / SG2065 / DV2065 |
| 9156 | A320MM | 320 | 24 | 22 | 52 | 1 | A | DHD2065 |
| 9162 | 2A265MM | 265 | 35 | 30.5 | 44 | 2 | B | SG3065 / DW3065 |
| 9164 | 2B350MM | 350 | 35 | 30.5 | 44 | 2 | B |
SG2080 / SG3080 / SG3090 YAV2090T / YAW3090T |
| 9166 | 2B425MM | 425 | 40 | 40 | 72.5 | 2 | B | SG1105T / YAH1105T / YAH1105TX |
| 9167 | 2B480MM | 480 | 40 | 40 | 73 | 2 | B | SG2105T / YAV2105T / YAV2105TX |
| 9167 | 4B515MM | 515 | 55 | 55 | 87.5 | 4 | B | SG1155T / YAH1155T |

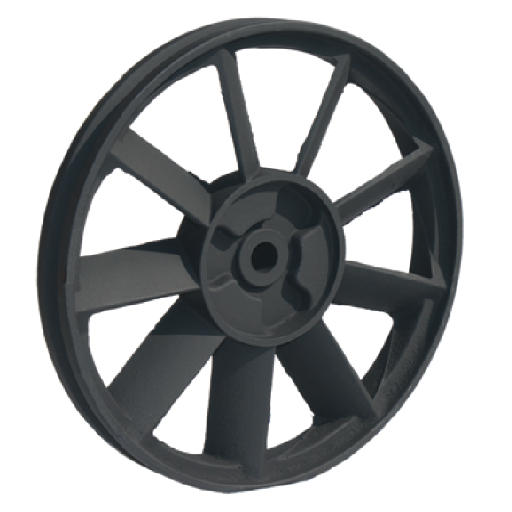

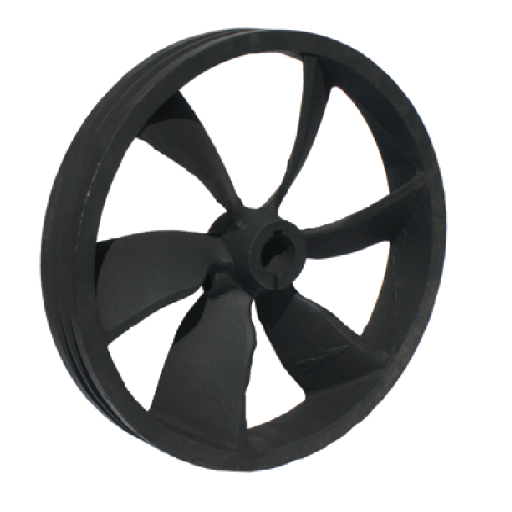

A150MM
A190MM
A265MM

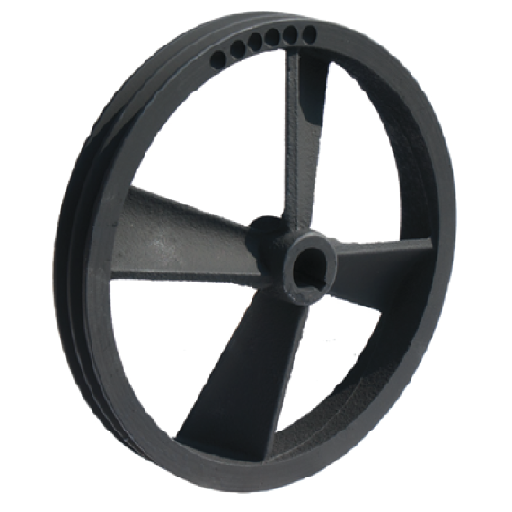

2A265MM

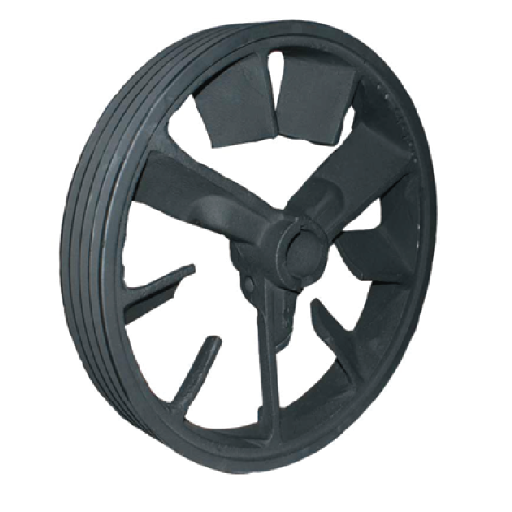

2B350MM
2B425MM
2B348MM
4B515MM
REJA PROTECTORA
| CLAVE | MODELO | DIMENSIONES (mm) | APTO PARA |
| L x A x H x H2 | MODELO DE COMPRESORES | ||
| 8801 | WZ-1 | 440 x 6.5 x 190 x 240 | SG1051 |
| 8802 | WZ-2 | 575 x 7.5 x 260 x 330 |
SG2051 / SG2065 SGJ2051A / SGJ2070 |
| 8803 | WZ-3 | 575 x 7.5 x 190 x 340 | SG1051A |
| 8804 | WZ-4 | 665 x 7.5 x 260 x 330 | SG-3065 |
| 8805 | WZ-5 | 820 x 8.5 x 280 x 415 | SG2080 / SG2090 |
| 8806 | WZ-6 | 1050 x 100 x 400 x 560 | SG2105T |
| 8807 | WZ-7 | 920 x 100 x 360 x 495 | SG1105T |
| 8808 | WZ-8 | 1180 x 120 x 410 x 610 | SG1155T |
REJA PROTECTORA

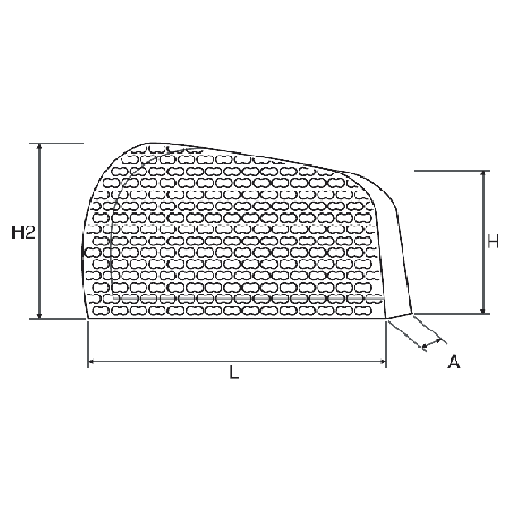

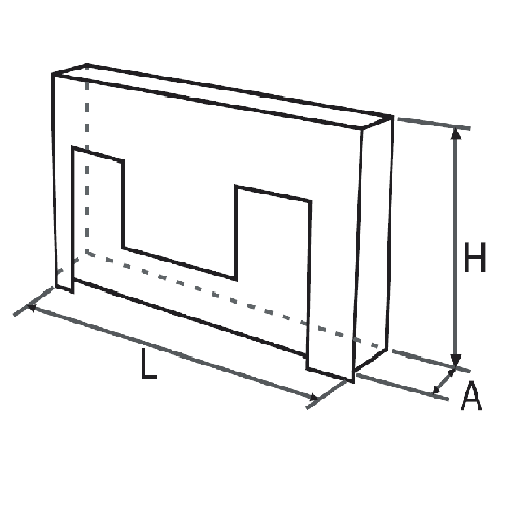

DIMENSIONES

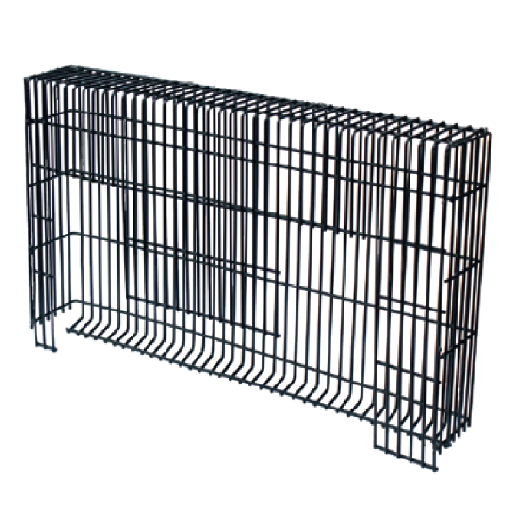

MALLA PROTECTORA
| CLAVE | MODELO | DIMENSIONES (mm) | APTO PARA |
| L x A x H | MODELO DE COMRPESOR | ||
| 8860 | WZTS-1 | 420 x 70 x 230 | SG1051 |
| 8861 | WZTS-2 | 460 x 85 x 240 | SG1065 |
| 8862 | WZTS-3 | 570 x 80 x 350 | SG (H) 2055A / SG (H) 2070A |
| 8863 | WZTS-4 | 570 x 80 x 350 |
SG (H) 2055B / SG (H) 2055C SG (H) 2055D / SG (H) 2070B SG (H) 2070C / SG (H) 2070D |
| 8864 | WZTS-5 | 610 x 75 x 350 | SG2051M-100L |
| 8865 | WZTS-6 | 780 x 84 x 405 | SGH2080 / SGH2090 |
| 8866 | WZTS-7 | 750 x 100 x 435 | SG1090T |
| 8867 | WZTS-8 | 850 x 100 x 450 | SG2080T |
| 8868 | WZTS-9 | 1060 x 120 x 560 | SG2105T |
|
8869 |
WZTS-10 | 1100 x 120 x 560 | SG2120T |

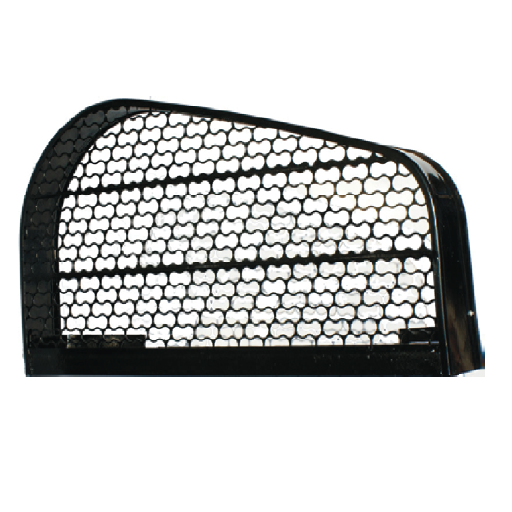

MALLA PROTECTORA
DIMENSIONES
CUBIERTA PROTECTORA DE MOTOR
| CLAVE | MODELO | APTO PARA MODELO DE COMPRESOR |
| 8831 | PFC-1 | SGDB9233 / SGBB9233 |
| 8832 | PFC-2 | SGFL9131 |
| 8833 | PFC-3 |
SGBM9131 / SGBM9032 / SGBM9033 / SGBM-50L |

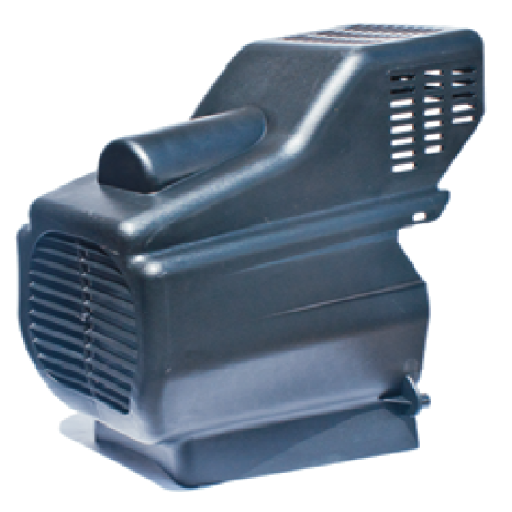

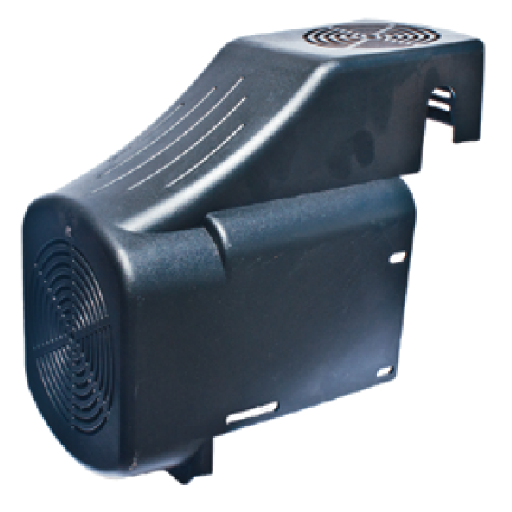

PFC-1

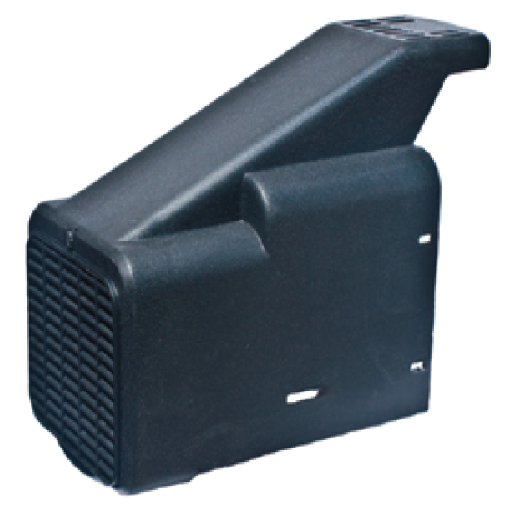

PFC-2
PFC-3
